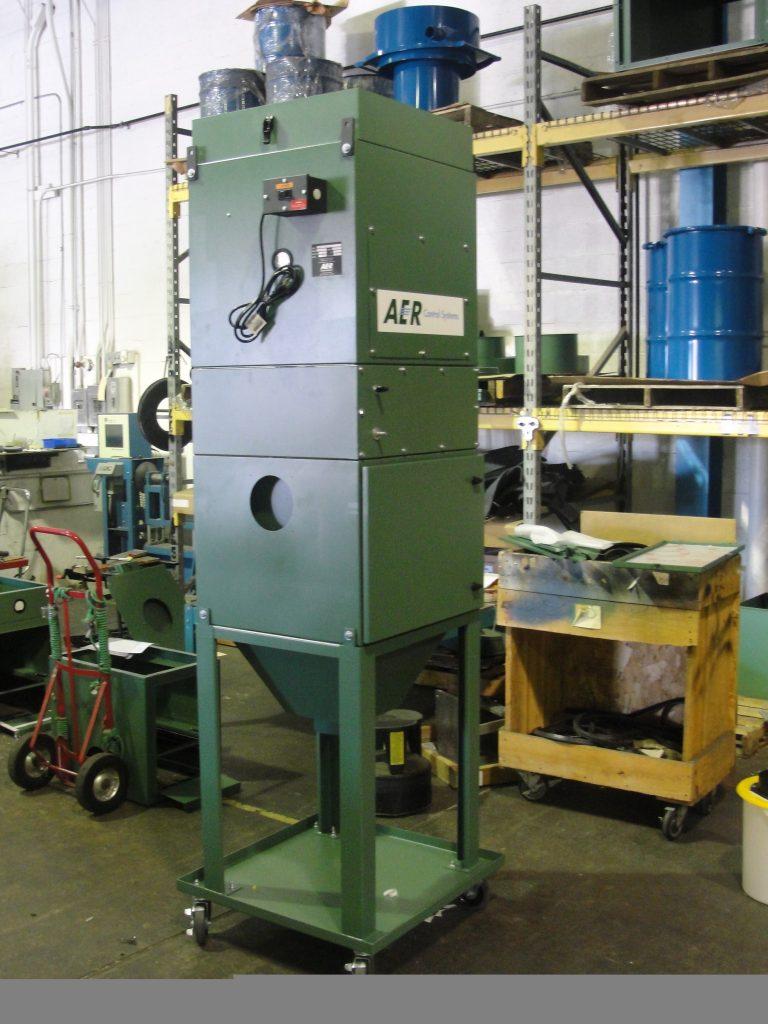

VSCF-800 Vertical Small Cartridge Collector

The VSCF-800 fume or dust collector was designed due to the need for a shorter cartridge filter, it is a miniature version of the VCF-1.  It is also an optional collector to the Dust Cab 800 for industrial manufacturing operations that need a more efficient filter which cleans using a reverse air pulse system which is a better unit for heavier loading of fume or dust.

  • Designed to remove dust, fume, and smoke
  • Standard Airflow 800 CFM using a 1.0 or 1.5 horsepower single phase TEFC motor
  • Power cord and switch
  • 99% cartridge filter efficiency at 0.5 microns
  • Removable Dust Drawer or optional hopper and stand
  • Optional casters
  • 4” or 6” inlet collar
  • Optional HEPA or Activated Carbon Afterfilter
  • Heavy duty construction with Kelly Green industrial textured powder coat finish
  • Direct drive backward inclined airfoil non-overloading fan
  • Mini-helic filter change-out guage
  • Manual Push Button air pulse cartridge filter cleaning
