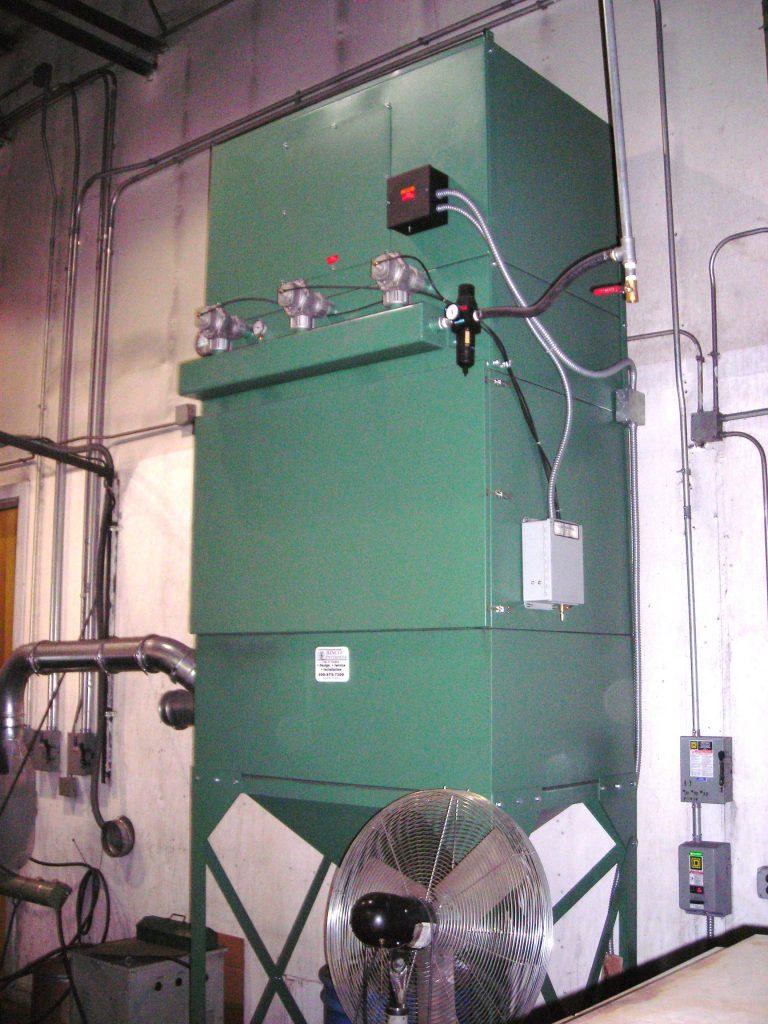

VCF-4 & VCF-6, 4 & 6 Vertical Cartridges

The VCF-4 and VCF-6 Fume or Dust Collector consist of either 4 or 6 vertical flame retardant cartridge filters.  The cartridge filters are cleaned using an auto timer or an on-demand cleaning system.  The inlet plenum is below the cartridge filters and the inlet includes a baffle to drive the heavy dust down into the hopper into a standard 55 gallon drum.  These two units are the largest in the family of VCF Series, see two smaller versions called the VCF-1 and VCF-2.

  • Airflows range from 2000 to 5000 CFM depending on unit size and motor horsepower
  • 99% filter efficiency at 0.5 microns
  • 1,096 total square feet of filter for the VCF-4 and 1644 total square feet of filter for the VCF-6
  • Direct drive backward inclined airfoil nonoverloading fan
  • Automatic timer or on-demand filter cleaning system
  • Magnehelic filter change-out guage
  • HEPA after-filter option
  • Floor stand and hopper for 55 gallon drum
  • 11- and 14-guage heavy duty metal construction
  • Kelly Green industrial textured powder coat finish
  • Optional timer controls such as Smart Pulse with downtime cleaning
  • Filter options to include Spun bond, NANO Fiber or hydrooleophobic
  • Dust drawer
