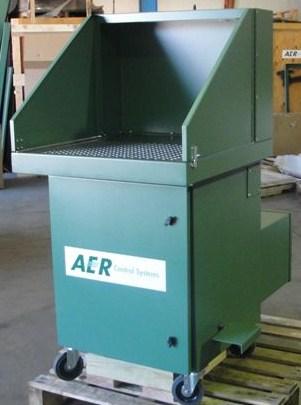

DD 800 Downdraft Table with Shaker Bags

The DD 800 is designed to capture low levels of non-explosive and non-flammable metal dust.  Good for de-burring and sanding.  The filters are cleaned by a foot pedal which shakes the dust off the filters.

  • Direct drive forward curved blower with a 1HP TEFC motor delivering 800 CFM at 3 inches external static pressure
  • 115/220 volt single phase
  • Low noise level at 66 dba
  • Manual foot shaker to manually clean the filter bags
  • Pull out dust drawer with a holding capacity of 0.9 cubic feet
  • Standard 4 inch inlet collar which is mounted on the rear
  • of the unit
  • Bubble gasket seal on blower and filter access doors
  • 22 envelope pocket, flame retardant cotton sateen filters
  • Total filter area is 55 square feet with toolless filter replacement
  • Built-in sound attenuator
  • 16 ga metal construction with a heavy duty texture powder coat finish

Spec Sheet & Manual Request

Please fill out the form below and the DD 800 Downdraft Table Spec Sheet & Manual will be emailed to you.
